Weber F-106 Delta Dart Seat

The Convair F-106 Delta Dart was equipped with this seat designed by Weber Aircraft. It was a replacement for a seat known as the Convair Rotational 'B' seat. That seat was designed specifically to address many of the high speed ejections. This one was optimized for the lower speed, and zero-zero applications. It was the first and only seat man-rated for zero-zero applications by a United States company. Although most later seats were capable of zero-zero use, they were not human tested for that.

This seat belongs to Jean Potvin, a parachute rigger and researcher who has become interested in ejection seats. He is a member of Parks College Parachute Research Group. The seat itself is from an F-106A. The parachute shown is a BA-18. Later seats were equipped with BA-24 force deployed parachutes.

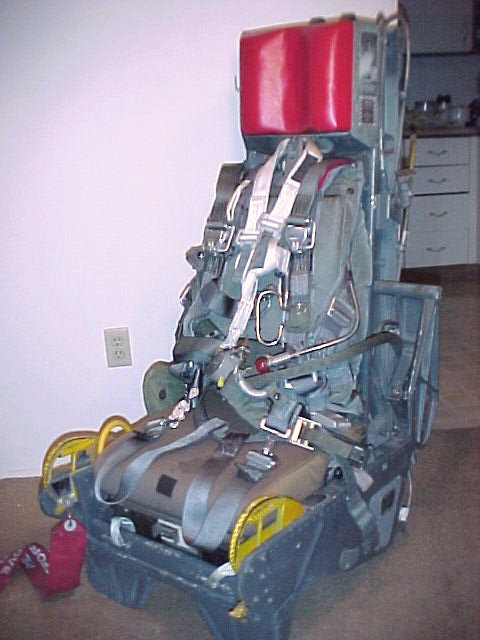

3/4 left view

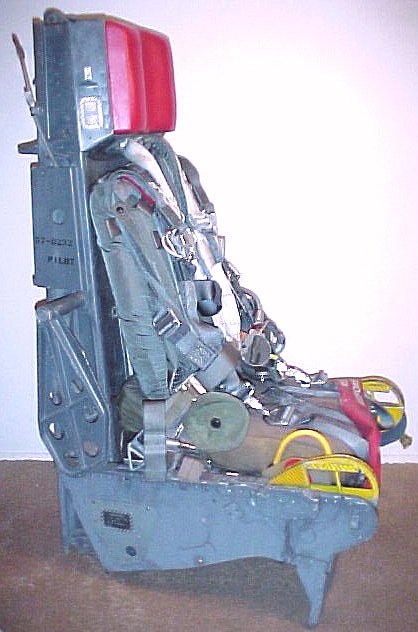

Left view
Right view

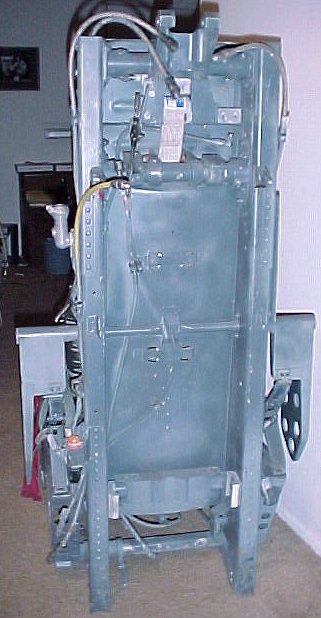

Rear view

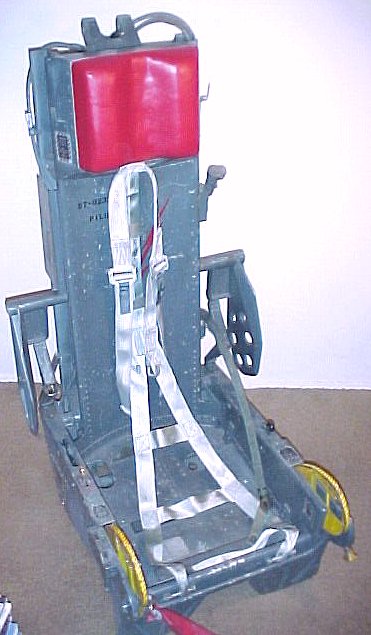

Undressed view showing the seat separation strap
Left side of parachute with side pocket open displaying the automatic opening device

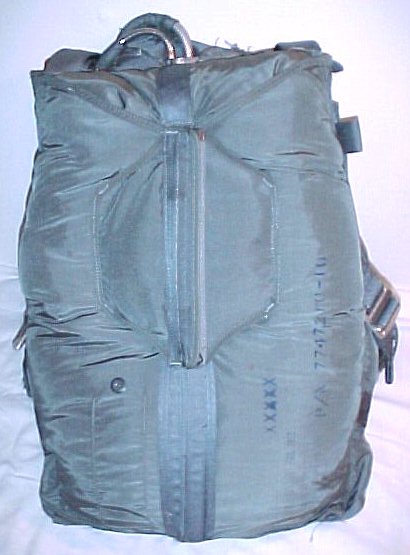

Rear of parachute

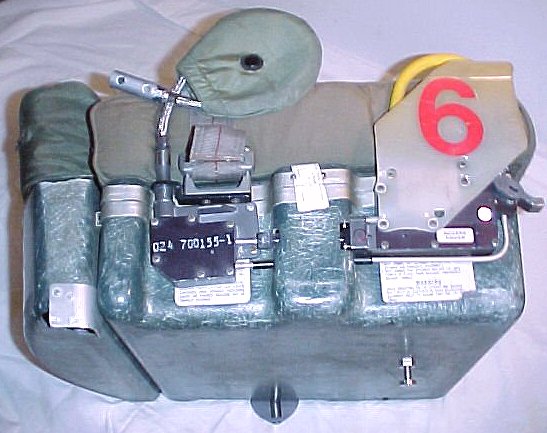

Front of the survival kit

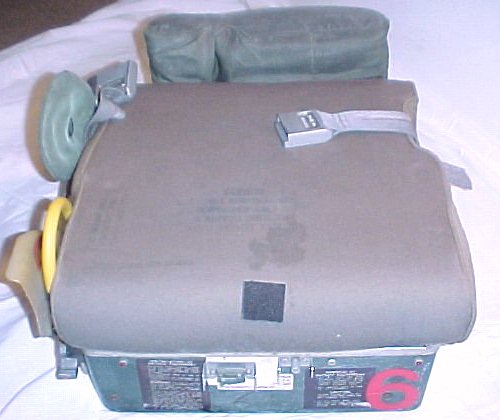

Right side of survival kit

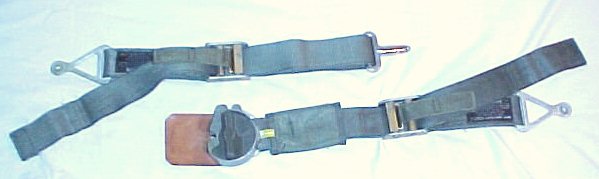

MA-6 lap belt
Another collectors F-106 seat
