AV-8B SJU-4 Ejection seat Seat
This Goodrich/Universal Propulsion Company seat is used in the AV-8B Harrier aircraft.

Other info on this seat can be found at these pages:

Stencel S-III-S family page
Harrier seat at airshow

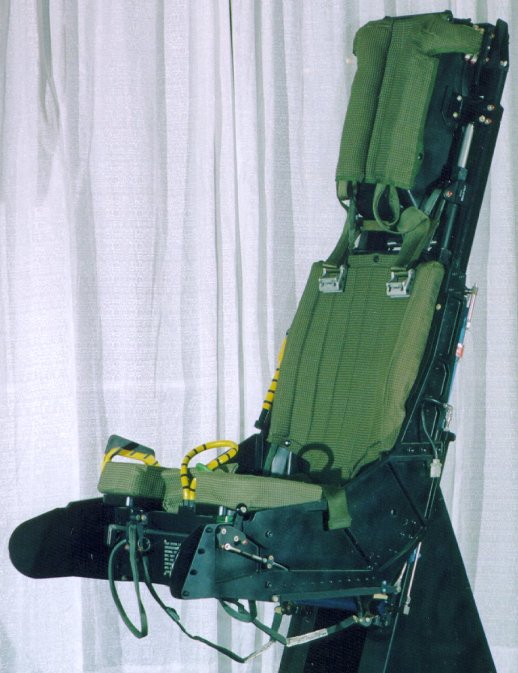

3/4 Left view

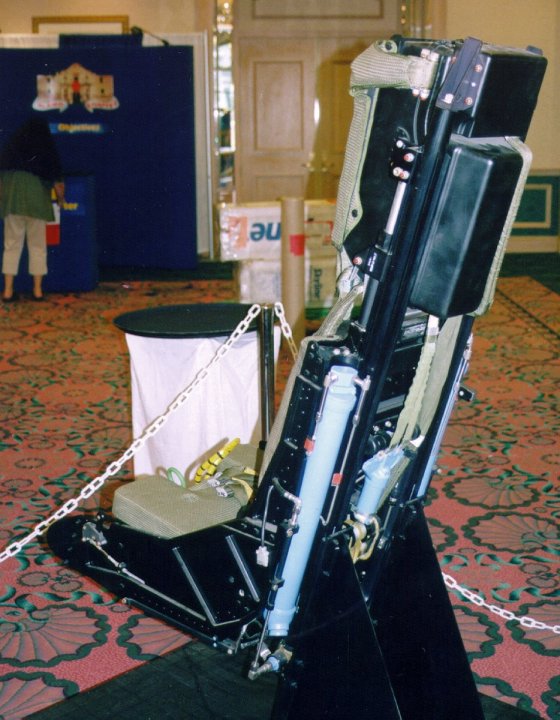

3/4 Right rear Note the blue (Inert) seat back rockets,
and the WORD rocket in the center of the back

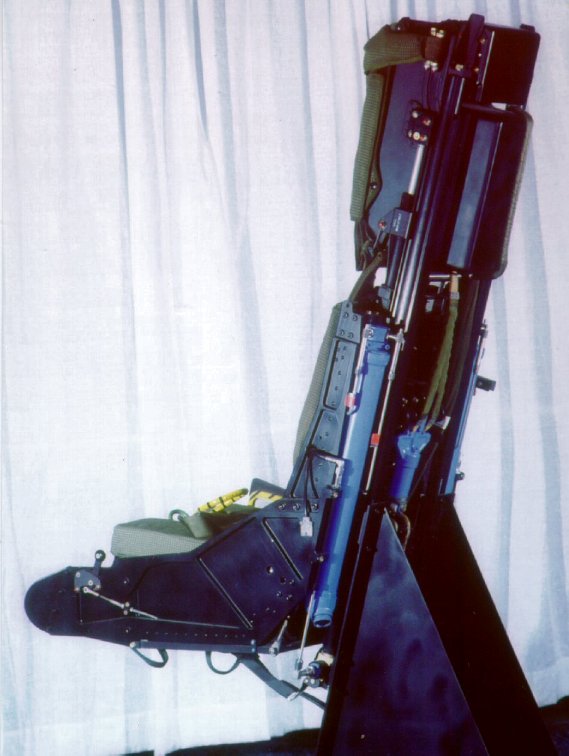

3/4 Left rear

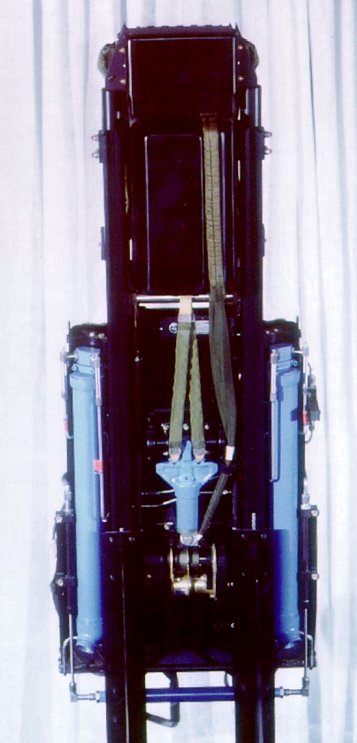

Full rear Note the word rocket drogue bridle and main
parachute bridles

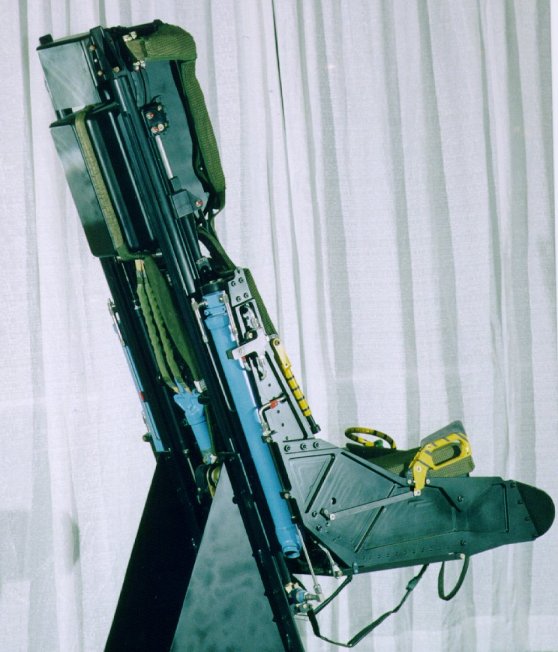

3/4 Left rear This angle shows the canopy breakers
and drogue boxes well.

This ejection seat was on display at theSAFE Association History of Escape Systems and the Evolution of Manikins Display during the SAFE Association 40th annual Symposium, October 2002
