Martin-Baker ASO6A Ejection Seat

This seat is used in the Aeromacci 326M Impala I aircraft by the South Africa Air Force. This seat is in service there and is completing a 360 day maintainance cycle. The seat is somewhat unique in that it does not use the typical Martin-Baker Personal Equipment Connector for the pilot services.

This is an early seat with

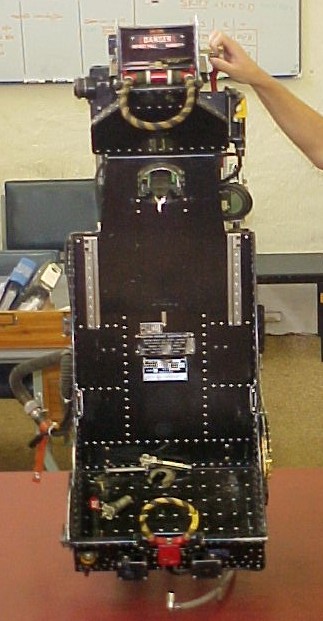

Front View. Note the initiator assemblies and other small parts in the bucket.

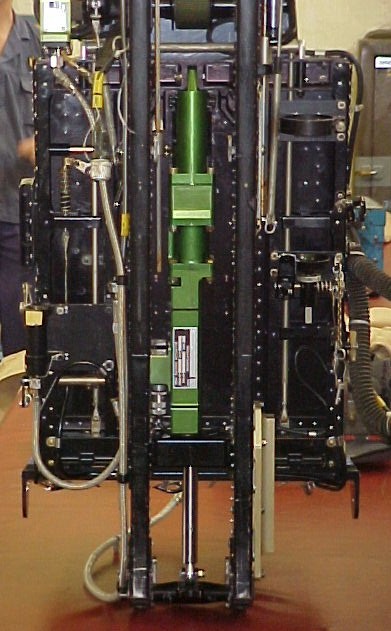

Rear View Showing the seat height adjust motor with the bucket at maximum height

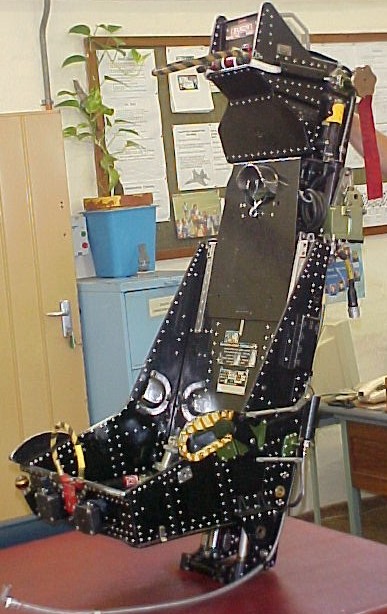

Left side
