Northrop F-5/T-38 Ejection Seat

These photos of a Northrop F-5/T-38 Ejection seat are from photocopies of photos of the seat, and one poor shot of a seat in situ. Recently, Ted Taylor, a former Shop Chief at Eadwards AFB sent along some additional photos of the T-38 seat, which have beena added below.

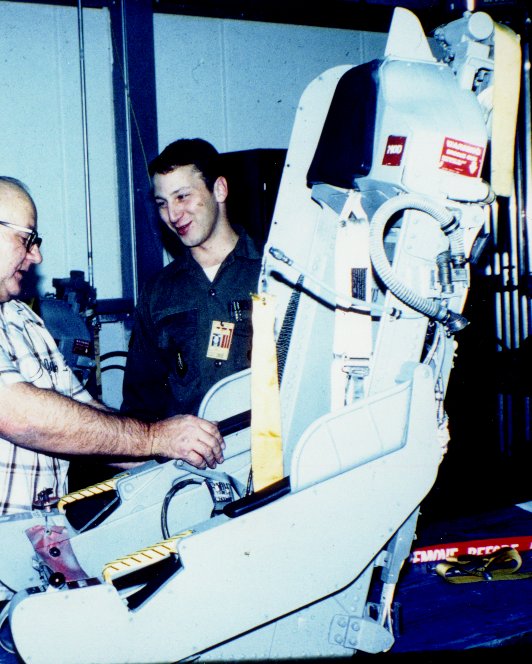

Left side view

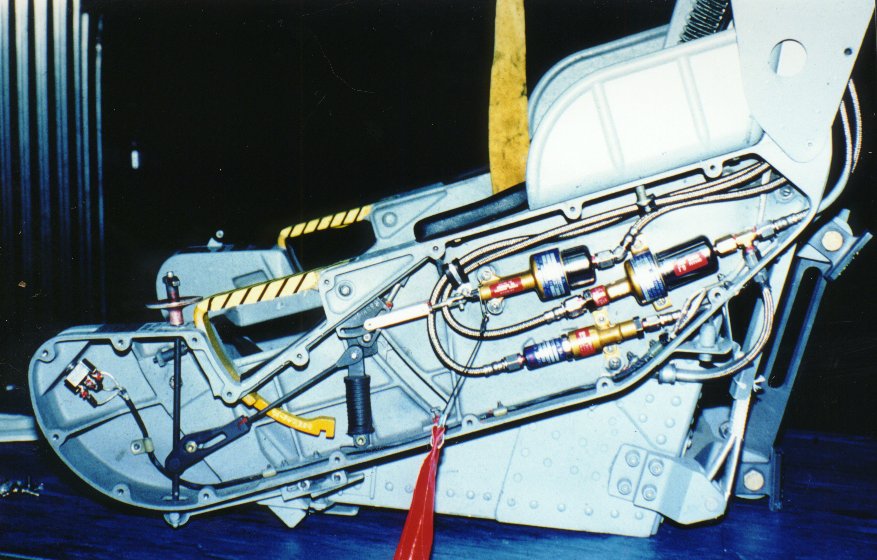

Lower Left with the outer cover removed

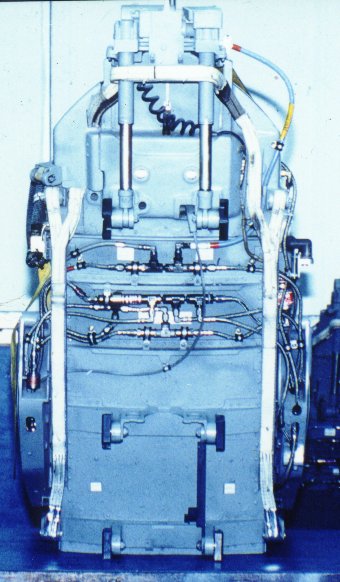

Rear view

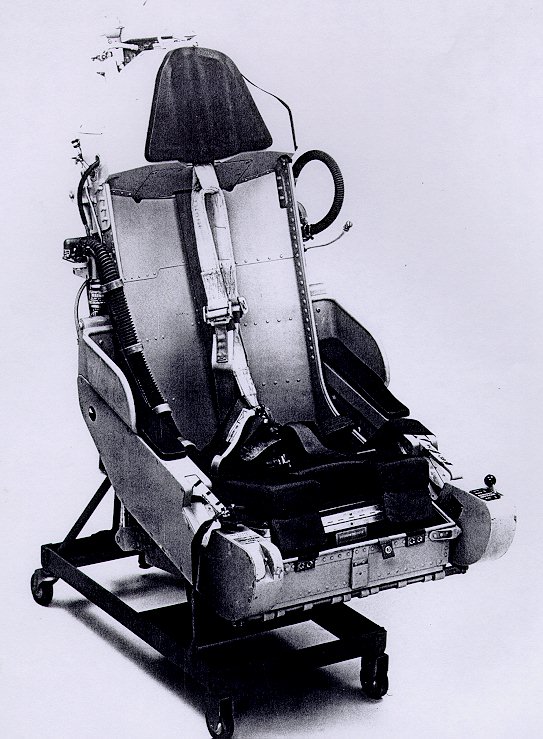

3/4 Right side view

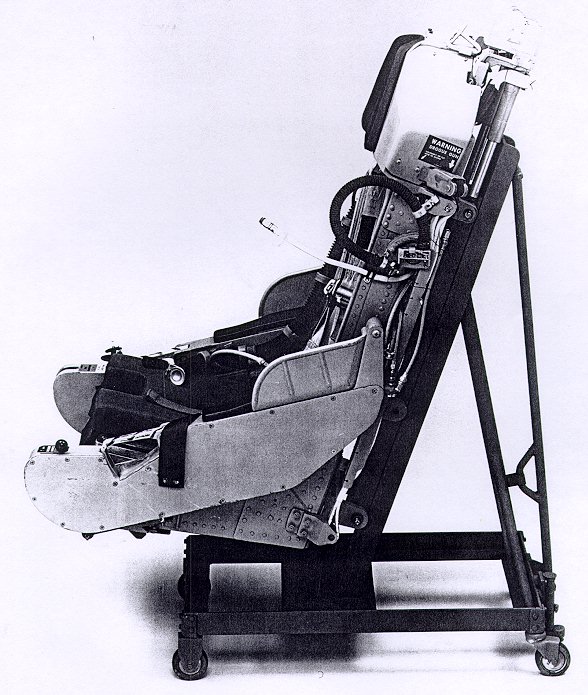

Left side

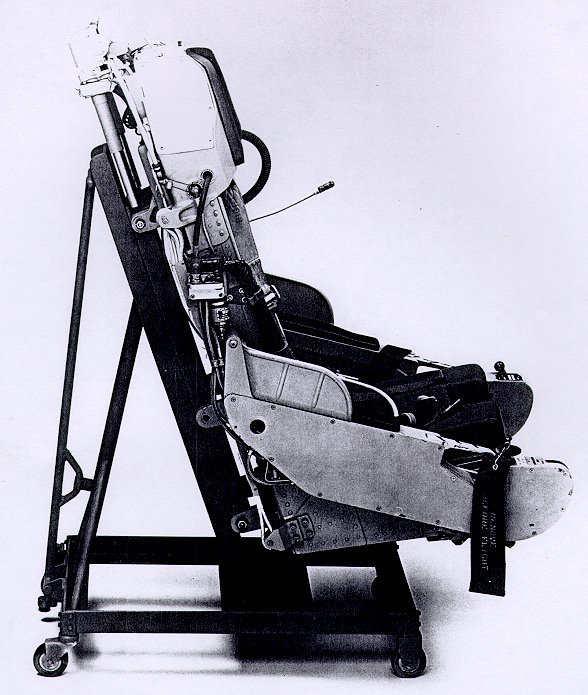

Right side

Thanks Ted! I appreciate you allowing me to use your photos!
